PZ673H Pneumatic Knife Gate Valve

Product overview

Product model: PZ673H
Nominal diameter: DN50~1200mm
Nominal pressure: PN0.6~1.6MPa
Operating temperature: -20~80℃
Body material: carbon steel (C), stainless steel (P4, P6)
Design standard: API 600, API6D, ASME B16.34, GB/T 12234
Structure length: ASME B16.10, API6D, GB/T 12221
Connection standard: ASME B16.5, ASME B16.47, GB/T 9113, JB/T 79, HG/T 20592
Pressure test: API 598, GB/T 13927, JB/T 9092
Pressure-temperature rating: ASME B16.34, GB/T 12224

PZ673H Pneumatic Knife Gate Valve product details

PZ673H Pneumatic Knife Gate Valve basic information
PZ673H pneumatic knife gate valve produced and sold by Baigang Valve Group is one of the important varieties of production process control valves.The solenoid valve can complete the switch control, and the electric valve positioner can also complete the adjustment control.Users can choose according to actual needs.The main body is made of cast steel, stainless steel, etc.It is especially suitable for paper industry, chemical industry, coal, sewage, sugar and other industries.

Connection method	On the folder, lugs
Cylinder form	Double role
control method	Switch type, adjustable type
Air pressure	Double role: 4 ~ 8bar, single role: 5 ~ 8bar
Medium temperature	W1: -40 to 180 W2: -40 to 180 W3: -30 to 425 W4: -40 to 425

PZ673H Pneumatic Knife Gate Valve characteristic
1. The valve adopts the integral design, the fluid resistance is small, the operation is flexible and convenient.
2. Manual knife gate valve screw transmission adopts double plane bearing design, making the transmission friction force greatly reduced, thus the valve opens easily and smoothly.
3.Knife gate valve sealing seat adopts movable seal, and the use of O-ring pre-tightening to provide pre-tightening force to seal seat close to the valve disc, the leakage is greatly reduced, the wear of sealing pair in long-term use has automatic compensation function to improve the service life.
4. Fixed guide claw, no groove design, not easy to cause media accumulation or blocking.
5. The valve seat can choose the metal hard seal or soft seal according to the needs of the medium and working condition: the gate plate adopts the surface chrome plating or ion nitriding treatment, so that the gate plate is more wear-resistant, the sealing surface service life is longer;Soft seal optional PTFE seat or reinforced PTFE seat or EPDM, butadiene rubber, good sealing, corrosion resistance.
6. Medium to adapt to a wide range: good sealing performance and strong economic practicability, operation can be manual, pneumatic, electric, practical range is very wide.

PZ673H Pneumatic Knife Gate Valve scope of application
The knife type pneumatic gate valve is an important actuator in the industrial automation control system. It can be controlled remotely and centrally to meet the needs of computer program control.Nowadays, it is widely used in petrochemical industry, gas equipment, nuclear industry, electric power equipment, environmental protection water treatment, HVAC, iron and steel metallurgy, industrial kiln, canning equipment, brewing equipment, drying equipment, vacuum equipment, surface treatment, biological pharmaceutical, food machinery, textile printing and dyeing, paper making and other industries.

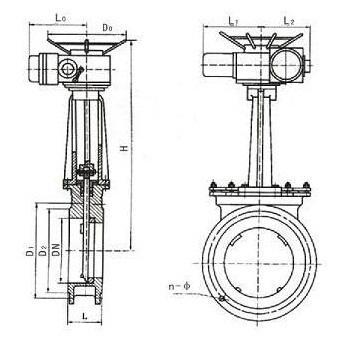

PZ673H Pneumatic Knife Gate Valve main shape and connection dimension

MPa	DN	L	D1	D2	H	n-M	MPa	DN	L	D1	D2	H	n-M
0.6MPa	50	48	90	110	335	4-M12	1.0MPa	50	48	100	125	335	4-M16
	65	48	110	130	363	4-M12		65	48	120	145	363	4-M16
	80	51	125	150	395	4-M16		80	51	135	160	395	4-M16
	100	51	145	170	465	4-M16		100	51	155	180	465	8-M16
	125	57	175	200	530	8-M16		125	57	185	210	530	8-M16
	150	57	200	225	630	8-M16		150	57	210	240	630	8-M20
	200	70	255	280	750	8-M16		200	70	265	295	750	8-M20
	250	70	310	335	900	12-M16		250	70	320	350	900	12-M20
	300	76	362	395	1120	12-M20		300	76	368	400	1120	12-M20
	350	76	412	445	1260	12-M20		350	76	428	460	1260	16-M20
	400	89	462	495	1450	16-M20		400	89	482	515	1450	16-M22
	450	89	518	550	1600	16-M20		450	89	532	565	1600	20-M22
	500	114	568	600	1800	16-M20		500	114	585	620	1800	20-M22
	600	114	670	705	2300	20-M22		600	114	685	725	2300	20-M27
	700	127	775	810	2500	24-M22		700	127	800	840	2500	24-M27
	800	127	880	920	2800	24-M27		800	127	898	950	2800	24-M30
	900	154	980	1020	3100	27-M27		900	154	1005	1050	3100	28-M30
	1000	165	1080	1120	3400	28-M27		1000	165	1115	1160	3400	28-M30
	1200	190	1295	1340	3600	32-M30		1200	180	1325	1380	3600	32-M36

Reminder:

All text, data and pictures in this article are for reference only.To see more details of the PZ673H Pneumatic Knife Gate Valve performance parameters, structural dimension parameters, pricing, etc., or to request high quality printing samples, please Contact us.
