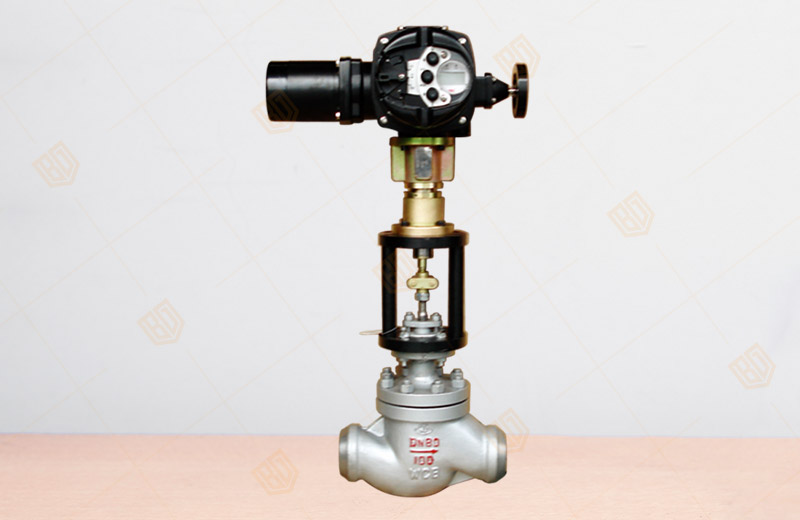

T968Y Electric Through Single Seat Regulating Valve

Product overview

Product model: T968Y
Nominal diameter: DN50~300mm
Nominal pressure: PN2.5~6.4MPa
Operating temperature: ≤450℃
Main material: WCB, WC6, 20CrMo
Connection type: welding
Design standard: GB/T17213
Inspection standard: GB/T4213

T968Y Electric Through Single Seat Regulating Valve product details

T968Y Electric Through Single Seat Regulating Valve working principle
T968Y Electric Through Single Seat Regulating Valve produced and sold by Baigang valve group is composed of electric actuator and hydrophobic control valve of two parts. Electric control valve input is sent to the regulator DC signal amplified by the servo amplifier to drive the implementing agency, resulting in axial thrust, driven by regulating valve action, causing changes in media flow to regulate various parameters in the system. At the same time, the actuator sends a valve position signal for servo amplifier comparison, so that the control valve always remains in an input signal corresponding position to complete the servo adjustment task.

T968Y Electric Through Single Seat Regulating Valve main technical parameters

Nominal diameter DN (mm)	50	80	100	150	200	250	300
Flow characteristics	Approximate linear, approximate equal percentage
Nominal pressure PN (MPa)	2.5 / 6.4
Connection type	welding
Equipped with implementing agencies	ZKD type
Travel L (mm)	57.6				88.2
The maximum pressure △ P (MPa)	0.5 / 3
Rated flow coefficient Cv	44	99	175	395	640	1000	1440
Working temperature (℃)	≤450				≤450
Use media	water

Note:
1, the model also has flange, right angle, and flange angle
2, also can be equipped with pneumatic actuator or HQ intelligent actuator

T968Y Electric Through Single Seat Regulating Valve main technical performance indicators

project	Technical performance indicators
Basic error (%)	Not more than ± 2.5
Back to the difference (%)	≤1.5
dead zone(%)	≤3
Leakage	0.01% × valve rated capacity

T968Y Electric Through Single Seat Regulating Valve main valve material

name	material
Body	WCB, WC6, 20CrMo
Spool	316 stainless steel
Shrouded	17-4PH
Valve stem	17-4PH
Seat	316 stainless steel

T968Y Electric Through Single Seat Regulating Valve main dimensions

Nominal diameter DN (mm)	50	80	100	150	200	250	300
H (mm)	860	918	918	918	1460	1690	1690
H1 (mm)	120	248	248	248	360	470	470
L (mm)	300	372	372	372	490	610	610
D1 (mm)	90	150	180	200	244	355	420
D2 (mm)	76	104	127	168	210	270	320
D3 (mm)	50	80	100	140	180	230	270

Reminder:

All text, data and pictures in this article are for reference only.To see more details of the T968Y Electric Through Single Seat Regulating Valve performance parameters, structural dimension parameters, pricing, etc., or to request high quality printing samples, please Contact us.
