SD363H/Y/F Two-way Pressure Butterfly Valve

Product overview

Product model: SD363H/Y/F
Nominal diameter: DN100 ~ 1200mm, NPS4" ~ 48"
Nominal pressure: Class 150Lb /PN25
Applicable temperature: Carbon steel: -29℃ ~ 425℃ Stainless steel: -40℃ ~ 650℃
Applicable medium: water, steam, hot water, oil
Drive mode: worm gear drive, electric, pneumatic, hydraulic
Welding standard: GB12224, ANSI B16, 25, DIN2559

SD363H/Y/F Two-way Pressure Butterfly Valve product details

SD363H/Y/F Two-way Pressure Butterfly Valve Product Overview

Baigang valve group can introduce advanced foreign technology, based on sophisticated J-shaped elastic ring and three eccentric multi-layer metal seal structure, is widely used in metallurgy, electric power, petrochemicals, as well as water supply and drainage and municipal construction and other industrial pipelines On, for regulating the flow and breaking fluid use. The valve adopts three eccentric structure, the valve seat and the disc sealing surface are made of different hardness and stainless steel, has good corrosion resistance, long service life, the valve Jun mail two-way sealing function, the product complies with national GB / T13927-92 valve pressure Test Standard.

SD363H/Y/F Two-way Pressure Butterfly Valve product features

1, the use of three eccentric butterfly valve can be called the top process valve, the design of the valve for the high temperature, high pressure, fire-rated foam sealing ideal for sealing the ideal butterfly valve.

2, due to the use of welding structure, so that the valve and the pipeline plane to achieve a permanent zero leakage.

3, the valve can not be flanged, bringing great convenience and beautiful appearance to the pipe and insulation bandaging.

SD363H/Y/F Two-way Pressure Butterfly Valve main technical parameters

Nominal diameter DN (mm)	DN100 ~ 1200mm, NPS4 "~ 48"
Nominal pressure PN (Mpa)	Strength test (1.5 × PN) Seal test (1.1 × PN)
proper temperature	Carbon steel: -29 ℃ ~ 425 ℃ Stainless steel: -40 ℃ ~ 650 ℃
Suitable media	Water, steam, hot water, oil
Drive mode	Worm gear, electric, pneumatic, hydraulic
Pressure Level	ANSI 150Lb Pound / PN25
Welding standards	GB12224, ANSI B16,25, DIN2559

SD363H/Y/F Two-way Pressure Butterfly Valve main components and materials

Part Name	material
Body	Carbon steel, stainless steel, chrome-aluminum steel
Butterfly plate	Carbon steel, alloy steel, stainless steel
Seat	3 stainless steel, cobalt-based cemented carbide
Sleeve	stainless steel
Valve stem	Stainless steel, special materials
filler	Flexible graphite

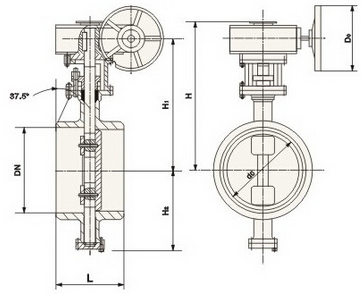

SD363H/Y/F Two-way Pressure Butterfly Valve Connection Size

Pass through		Main dimensions			Pass through		Main dimensions
in	DN (mm)	L	H1	H	in	DN (mm)	L	H1	H
4	100	190	270	370	18	450	330	535	820
5	125	200	295	390	20	500	350	560	900
6	150	210	308	416	24	600	390	630	980
8	200	230	370	530	28	700	430	670	1100
10	250	250	450	580	32	800	470	800	1300
12	300	270	465	630	36	900	510	850	1370
14	350	290	475	595	40	1000	550	880	1480
16	400	310	505	755	48	1200	630	1000	1690

Reminder:

All text, data and pictures in this article are for reference only.To see more details of the SD363H/Y/F Two-way Pressure Butterfly Valve performance parameters, structural dimension parameters, pricing, etc., or to request high quality printing samples, please Contact us.
